HFVM11L729EAC2VEBEZBZ

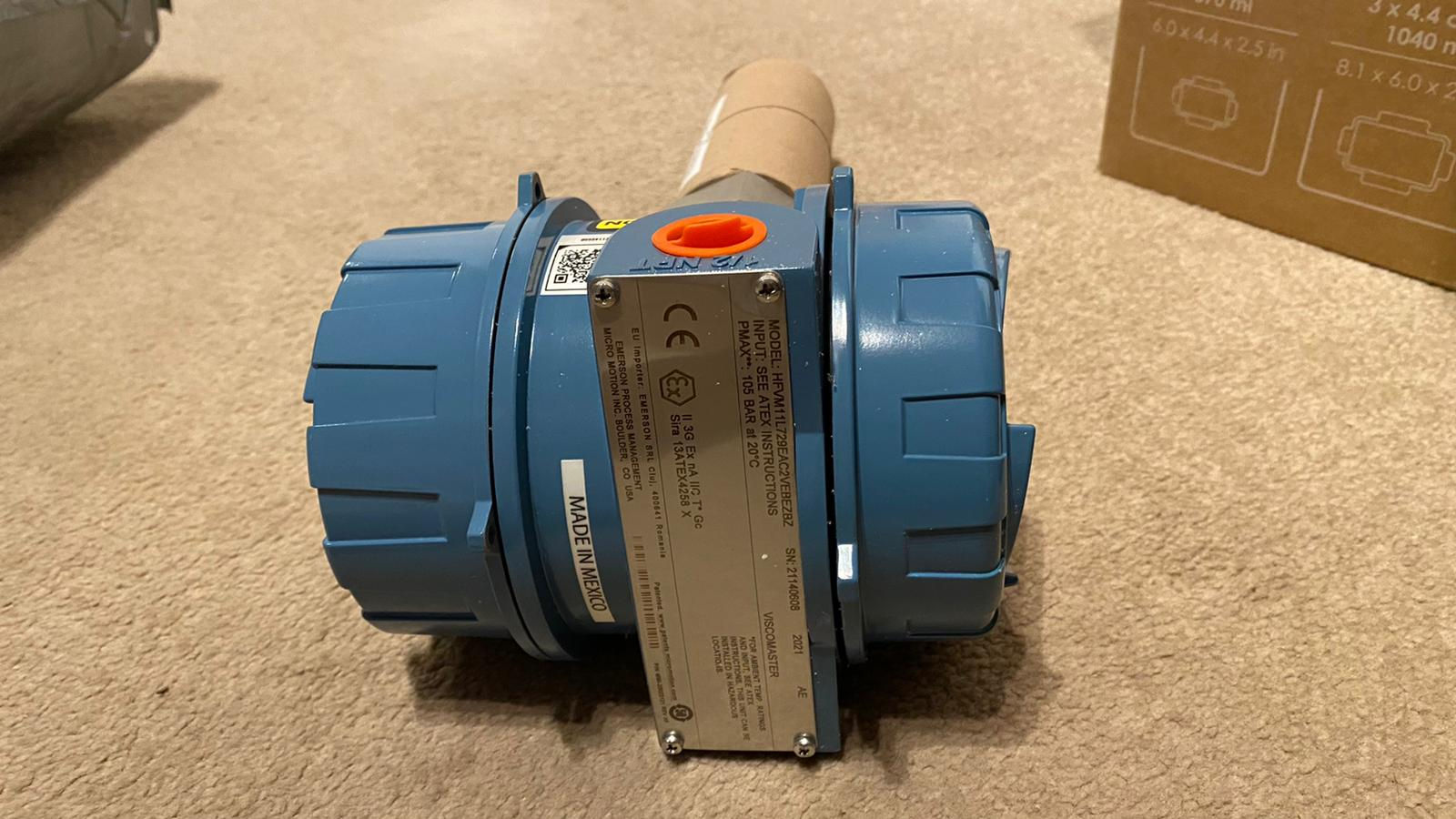

HFVM Model: Micro Motion Viscomaster Heavy Fuel Meter, 316L Stainless Steel
1 Sensor Range And Performance: Viscosity accuracy ±0.2 cP (0-10 cP range) then ±1% of FS of calibrated range, viscosity limit 20, 000 cP
1 Stem Length: 0 mm : no stem extension and with standard spigot
L Materials Of Wetted Parts: 316L Stainless, Diamond Like Carbon coated tines
729 Process Connections: 1 1/2-inch Cone Seat Compression fitting
E Calibration Type: 3-inch schedule 80 boundary (Viscosity limits = 1000cSt (782791 Flow Through Chamber) )
A Transmitter Housing Option: Integral Aluminium Alloy
C Transmitter Output: Integral transmitter, Channel A=mA + HART, Channel B = mA output, Channel C = RS485 Modbus
2 Display Option: 2 line display ( non backlit)
V Approvals: ATEX - Equipment category 3 (zone 2)
E Application Configuration: Line Viscosity ; [4mA = 0cSt, 20mA = 100cSt]
B Calibration Range: 0.5 to 100cP (viscosity and density calibration)
E Language: English inst. manual and English config. manual
Z Future Option 1: Reserved for future use
B Conduit Connections: M20 stainless steel adapters
Z Factory Options: Standard product
